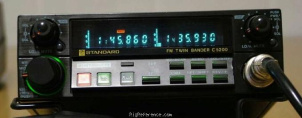

Standard C-5200E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Standard C-5200E rigs and spare parts on eBay

The Standard C-5200E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both transmit and receive. RF output power is selectable between High: 10/10 W, Low: 1/1 W. The radio features Twin RX. Power requirements are 13.8V DC with a current drain of 600 mA in receive mode and a maximum of 3.4 A in transmit mode. Dimensions are 50 × 150 × 180 mm and the weight is 1.8 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 10/10 W, Low: 1/1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 600 mA
TX: Max 3.4 A

Physical

Dimensions (w×h×d): 150 × 50 × 180 mm (5.91 × 1.97 × 7.09 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 4075
MPN: STANDARD-C-005200E
