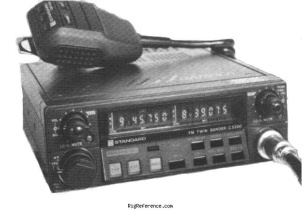

Standard C-5200ED

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Standard C-5200ED rigs and spare parts on eBay

Find the Standard C-5200ED on Amazon

The Standard C-5200ED is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both reception and transmission. The RF output is High: 50/40 W, Low: 5/5 W. It requires 13.8V DC power. Current drain in RX mode is 600 mA. In TX mode the current draw is Hi 10.5 A, Lo 3.5 A. The dimensions are 50 × 150 × 205 mm and it weighs 2 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 50/40 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 600 mA
TX: Hi 10.5 A, Lo 3.5 A

Physical

Dimensions (w×h×d): 150 × 50 × 205 mm (5.91 × 1.97 × 8.07 in)
Weight: 2.00 kg (4.4 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 4076
MPN: STANDARD-C-005200ED

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
