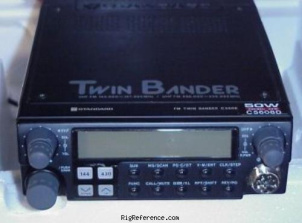

Standard C-5608D

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Standard C-5608D rigs and spare parts on eBay

The Standard C-5608D is a Mobile VHF/UHF Transceiver. It covers 115-180 / 328-500 MHz for receive and 144-148 / 430-440 MHz (or 144-148 / 438-450 MHz in the USA) for transmit. RF output is High: 50/50 W, Medium: 10/10 W, Low: 3/3 W. It features 1 memory bank with 40 channels. The C-5608D has a detachable head and CTCSS & DTMF option Twin RX. Dimensions are 50 × 150 × 210 mm. It requires 13.8V DC power and draws 0.9-1.6 A while receiving and a maximum of 12 A while transmitting. It weighs 2 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 115-180 / 328-500 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 / 430-440 MHz
144-148 / 438-450 MHz (USA)
Modulations: FM
RF-output: High: 50/50 W, Medium: 10/10 W, Low: 3/3 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.9-1.6 A
TX: Max 12 A

Physical

Dimensions (w×h×d): 150 × 50 × 210 mm (5.91 × 1.97 × 8.27 in)
Weight: 2.00 kg (4.4 lbs)
Form factor: Mobile
Manufactured: Between 1991 and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: Detachable head. CTCSS & DTMF option Twin RX
Accessories: -
RigReference ID: 4081
MPN: STANDARD-C-005608D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
