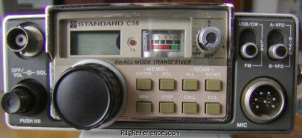

The Standard C-58 is a mobile VHF transceiver. It covers 144-148 MHz for both receive and transmit. The RF output is 1 W. It features 1 memory bank with 5 channels. Power requirements are 9.6-16V DC. Dimensions are 52 × 129 × 191 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 5 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- FM: 25 kHz (-60 dB)
SSB/CW: 4.2 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM CW SSB
- RF-output
- 1 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.6-16V DC
- Current drain RX
- 100-600 mA
- TX
- Max 500 mA
Physical
- Dimensions (w×h×d)
- 129 × 52 × 191 mm (5.08 × 2.05 × 7.52 in)
- Weight
- 1.25 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1981 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4085
- MPN
- STANDARD-C-000058
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard C-58. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Standard C-58 is around:
- USD 152.00
These estimates are based on the following prices:
