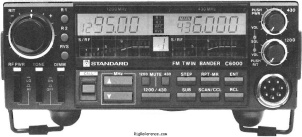

Standard C-6000

Mobile UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Standard C-6000 rigs and spare parts on eBay

The Standard C-6000 is a Mobile UHF Transceiver. It covers 430-440 / 1260-1300 MHz for both receive and transmit. The receiver system utilizes 70 cm: Double-conversion, 23 cm: Triple-conversion superheterodyne. The IF frequencies are 1st: 21.8 MHz (70 cm), 157.0 MHz (23 cm) 2nd: 455 KHz (70 cm), 45.0 MHz (23 cm) 3rd: 455 KHz (23 cm). The RF output is High: 10/10 W, Low: 1/1 W. The transceiver features Twin RX. Power requirements are 13.8V DC +/-15%. Dimensions are 55 × 155 × 207 mm. The weight is 1.8 kg. Current drain is Max 900 mA (RX) and 1.5-4.5 A (TX).

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 / 1260-1300 MHz
Modulations: FM
Sensitivity: 0.16 µV (12 dB SINAD)
Selectivity: 12 kHz (-6 dB), 24 kHz (-60 dB)
Filters: ?
Receiver system: 70 cm: Double-conversion, 23 cm: Triple-conversion superheterodyne
IF-frequencies: 1st: 21.8 MHz (70 cm), 157.0 MHz (23 cm)
2nd: 455 KHz (70 cm), 45.0 MHz (23 cm)
3rd: 455 KHz (23 cm)
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 / 1260-1300 MHz
Modulations: FM
RF-output: High: 10/10 W, Low: 1/1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/-15%
Current drain RX: Max 900 mA
TX: 1.5-4.5 A

Physical

Dimensions (w×h×d): 155 × 55 × 207 mm (6.10 × 2.17 × 8.15 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 1986 and 198x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 4088
MPN: STANDARD-C-006000

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Standard C-6000 / C-6000S Manual (probably Japanese) PDF - 1.60 MB, submitted by Gerd
