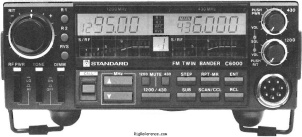

The Standard C-6000S is a Mobile Transceiver. It covers 430-440 / 1260-1300 MHz for both RX and TX. The receiver system utilizes 70 cm: Double-conversion, 23 cm: Triple-conversion superheterodyne with IF frequencies of 1st: 21.8 MHz (70 cm), 157.0 MHz (23 cm), 2nd: 455 KHz (70 cm), 45.0 MHz (23 cm) and 3rd: 455 KHz (23 cm). The RF output is High: 25/10 W, Low: 5/1 W. It features Twin RX. Dimensions are 55 × 155 × 207 mm. Power requirements are 13.8V DC +/-15%. Current drain in RX mode is Max 900 mA and in TX mode is 1.5-8 A.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 / 1260-1300 MHz
- Modulations
- FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 24 kHz (-60 dB)
- Filters
- ?
- Receiver system
- 70 cm: Double-conversion, 23 cm: Triple-conversion superheterodyne
- IF-frequencies
- 1st: 21.8 MHz (70 cm), 157.0 MHz (23 cm)
2nd: 455 KHz (70 cm), 45.0 MHz (23 cm)
3rd: 455 KHz (23 cm) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 / 1260-1300 MHz
- Modulations
- FM
- RF-output
- High: 25/10 W, Low: 5/1 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Max 900 mA
- TX
- 1.5-8 A
Physical
- Dimensions (w×h×d)
- 155 × 55 × 207 mm (6.10 × 2.17 × 8.15 in)
- Weight
- 1.80 kg (4.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1986 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 4089
- MPN
- STANDARD-C-006000S
