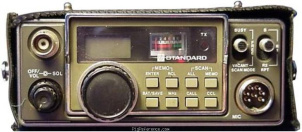

The Standard C-78 is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. RF output is 1W. Power requirements are 9.6-16V DC. Dimensions are 52 × 129 × 191 mm. The weight is 1.25 kg without batteries. Current drain during transmit is Max 600 mA.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- 1 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.6-16V DC
- Current drain RX
- ?
- TX
- Max 600 mA
Physical
- Dimensions (w×h×d)
- 129 × 52 × 191 mm (5.08 × 2.05 × 7.52 in)
- Weight
- 1.25 kg (2.8 lbs) without batteries
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4094
- MPN
- STANDARD-C-000078
Manuals, diagrams and brochures
- Standard C78 User Manual PDF - 10.91 MB, submitted by Rafa
- Standard C78 SCH PDF - 387.3 kB, submitted by Rafa
- Standard C78 Block Flow PDF - 180.9 kB, submitted by Rafa
- Standard Cpb78 User Manual PDF - 3.60 MB, submitted by Rafa
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard C-78. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Standard C-78 is around:
- GBP 23.00
These estimates are based on the following prices:
