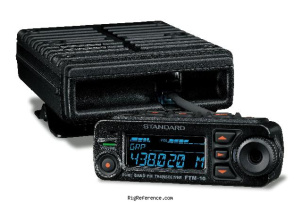

Standard FTM-10

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

5 / 6.25 / 8.22 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 100 kHz

Memories

500 channels in 1 bank(s)

Receiver

RX-range

0.5-1.8 / 76-108 / 108-222 / 300-1000 MHz

Modulations

AM   FM   N-FM   W-FM Stereo

Sensitivity

AM (10 dB S/N)
0.5-1.7 MHz: 5 µV
108-137 MHz: 0.8 µV
300-336 MHz: 0.8 µV
FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
336-420 MHz: 0.25 µV
420-470 MHz: 0.2 µV
800-900 MHz: 0.4 µV
900-1000 MHz: 0.8 µV
W-FM (12 dB SINAD)
76-108 MHz: 2 µV
174-222 MHz: 1 µV
470-800 MHz: 5 µV

Selectivity

AM/FM: 12 kHz (-6 dB), 30 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 / 430-440 MHz (Asia)

Modulations

FM   N-FM

RF-output

High: 20/20 W, Low: 5/5 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

11.7-15.8V DC

Current drain RX

0.5 A

TX

?

Physical

Dimensions (w×h×d)

112 × 38 × 178 mm (4.41 × 1.50 × 7.01 in)

Weight

1.30 kg (2.9 lbs)

Form factor

Mobile

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Alpha tags. Bluetooth. Clock/Calendar. WIRES-ready. Line in. PA. DTMF, CTCSS & DCS. 9K6 packet ready. Twin RX

Accessories

-

RigReference ID

4099

MPN

STANDARD-FTM-000010
