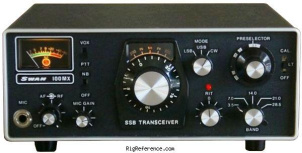

Swan (Cubic) 100 MX

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m

Modulations

CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-80 m

Modulations

CW   SSB

RF-output

100 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

12-14V DC

Current drain RX

?

TX

Max 20 A

Physical

Dimensions (w×h×d)

247 × 95 × 301 mm (9.72 × 3.74 × 11.85 in)

Weight

5.90 kg (13.0 lbs)

Form factor

Base Station

Manufactured

Between 1980 and 198x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4111

MPN

SWAN-(CUBIC)-000100-MX

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Swan (Cubic) 100 MX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Swan (Cubic) 100 MX is around:

• USD 16.00
