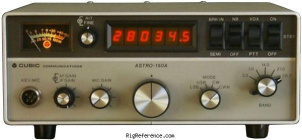

Swan (Cubic) Astro-150A

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Swan (Cubic) Astro-150A is a 10-80 m transceiver. RF output is 100 W. It requires 12-14V DC and has a maximum current drain of 20 A during transmit. Dimensions are 95 × 248 × 302 mm.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ? conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-80 m
Modulations: CW USB LSB
RF-output: 100 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12-14V DC
Current drain RX: ?
TX: Max 20 A

Physical

Dimensions (w×h×d): 248 × 95 × 302 mm (9.76 × 3.74 × 11.89 in)
Weight: 5.90 kg (13.0 lbs)
Form factor: Base Station
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Full QSK
Accessories: -
RigReference ID: 4130
MPN: SWAN-(CUBIC)-ASTRO-000150A
