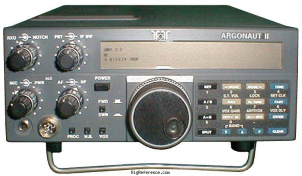

Ten-Tec Argonaut II (535)

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.1-30 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

SSB: 0.25 µV (10 dB SN)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>80 dB

Audio output

?

Transmitter

TX-range

10-160 m

Modulations

AM   FM   CW   SSB

RF-output

0-5 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

750 mA max

TX

3 A max

Physical

Dimensions (w×h×d)

248 × 95 × 318 mm (9.76 × 3.74 × 12.52 in)

Weight

4 gr (0.1 oz)

Form factor

Base Station

Manufactured

Between 198x and 198x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Full QSK. PBT. NB. VOX

Accessories

-

RigReference ID

4158

MPN

TEN-TEC-ARGONAUT-II-(000535)
