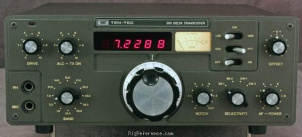

Ten-Tec Delta (580)

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m + WARC

Modulations

CW   USB   LSB

Sensitivity

0.3 µV (10 dB S+N/N)

Selectivity

?

Filters

2.4 kHz (300/500 Hz optional) + audio filters

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC

Modulations

CW   USB   LSB

RF-output

200 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

12V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

295 × 120 × 381 mm (11.61 × 4.72 × 15.00 in)

Weight

5.60 kg (12.4 lbs)

Form factor

Mobile

Manufactured

Between 1980 and 1982

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4166

MPN

TEN-TEC-DELTA-(000580)

Manuals, diagrams and brochures

Ten-Tec 580 Delta Operator's Manual PDF - 7.38 MB, submitted by Gerd



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Delta (580). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ten-Tec Delta (580) in Good condition is around:

• USD 175

Price History Chart

These estimates are based on the following prices:
