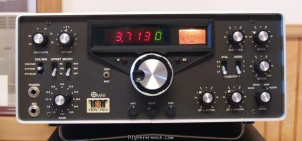

Ten-Tec Omni-C

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Ten-Tec Omni-C rigs and spare parts on eBay

The Ten-Tec Omni-C is a HF transceiver. It covers 1.8-30 MHz (amateur bands) for both transmit and receive. The RF output is 85-100 W. Frequency stability is ≤ 15 Hz per °C after 30 minutes warmup. It features filters of 250 / 500 / 1800 Hz. The IF frequencies are 9 MHz. Current drain in receive mode is 850 mA and 18.5 A max in transmit mode. Dimensions are 140 × 362 × 355 mm. It requires 12-14V DC power.

General characteristics

HAM bands: ?
Frequency stability: ≤ 15 Hz per °C after 30 minutes warmup
Tuning steps: ?
Memories: ?

Receiver

RX-range: 1.8-30 MHz (amateur bands)
Modulations: CW USB LSB
Sensitivity: 2.0 µV on 1.8 MHz (10 dB S+N/N)
0.3 µV on 28 MHz (10 dB S+N/N)
Selectivity: 2.4 kHz
Filters: 250 / 500 / 1800 Hz
Receiver system: ?
IF-frequencies: 9 MHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1.8-30 MHz (amateur bands)
Modulations: CW USB LSB
RF-output: 85-100 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12-14V DC
Current drain RX: 850 mA
TX: 18.5 A max

Physical

Dimensions (w×h×d): 362 × 140 × 355 mm (14.25 × 5.51 × 13.98 in)
Weight: 6.57 kg (14.5 lbs)
Form factor: Base Station
Manufactured: Between 1981 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4170
MPN: TEN-TEC-OMNI-C

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
