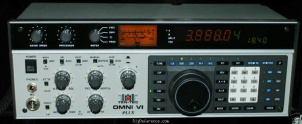

The Ten-Tec Omni VI Plus (564) is a 10-160 m transceiver. RF output is 0-100 W. It features 1 memory bank with 100 channels, RS-232C and DSP. The rig requires 12-15V DC. Current drain is 2 A max in receive mode and 20 A max in transmit mode. Dimensions are 146 × 375 × 432 mm.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 10-160 m
- Modulations
- FM CW SSB FSK AFSK
- Sensitivity
- FM: 0.35 µV (12 dB SINAD @ 15 kHz BW)
SSB/CW: 0.16 µV (10 dB S+N/N @ 2.4 kHz BW) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >90 dB!
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- FM CW SSB FSK AFSK
- RF-output
- 0-100 W
Connections
- Antenna
- RCA (Tulip)
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC
- Current drain RX
- 2 A max
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 375 × 146 × 432 mm (14.76 × 5.75 × 17.01 in)
- Weight
- 7.25 kg (16.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1997 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RS-232C. DSP
- Accessories
- -
- RigReference ID
- 4175
- MPN
- TEN-TEC-OMNI-VI-PLUS-(000564)
Manuals, diagrams and brochures
- Model-564 Omni VI Plus Manual 2262E PDF - 9.28 MB, submitted by Silva B.S
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Omni VI Plus (564). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Ten-Tec Omni VI Plus (564) is around:
- USD 152.00
- GBP 71.00
