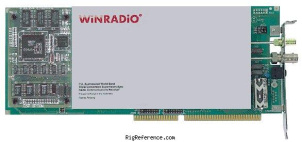

WiNRADiO WR-3500i-DSP

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.15-2600 MHz

Modulations

AM   N-FM   W-FM   CW   SSB

Sensitivity

0.5-1.5 MHz, AM: 5 µV, SSB: 0.9 µV, FM: 0.9 µV
1.5-30 MHz, AM: 1 µV, SSB: 0.3 µV, FM: 0.35 µV
30-1000 MHz, AM: 1 µV, SSB: 0.3 µV, FM: 0.35 µV
1000-1500 MHz, AM: 1.5 µV, SSB: 0.5 µV, FM: 0.4 µV
1500-2600 MHz, AM: 3 µV, SSB: 1 µV, FM: 0.4 µV

Selectivity

AM: 6 kHz (-6 dB)
FM-N1: 6 kHz (-6 dB)
FM-N2: 15 kHz (-6 dB)
FM-N3: 50 kHz (-6 dB)
W-FM: 230 kHz (-6 dB)
SSB/CW: 2.5 kHz (-6 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

65 dB

Audio output

?

Connections

Antenna

BNC + SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

Drawn from ISA-bus

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

290 × 115 × mm (11.42 × 4.53 × 0.00 in)

Weight

?

Form factor

PC-card

Manufactured

Between 200x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Internal ISA. DSP. Trunking option

Accessories

-

RigReference ID

4204

MPN

WINRADIO-WR-003500I-DSP
