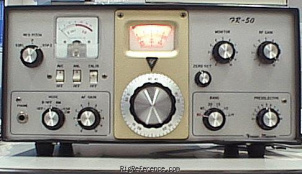

The Yaesu FR-50 is a HF Receiver covering 10-80 m. It utilizes an 8 tube receiver system and has image rejection better than 50 dB. The radio weighs 8 kg and measures 153 × 334 × 262 mm. It requires Mains power.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- AM: Better than 1 µV (10 dB S/N)
SSB/CW: Better than 0.5 µV (10 dB S/N) - Selectivity
- +/- 1.5 kHz (-6 dB), +/-5 kHz (-50 dB)
- Filters
- ?
- Receiver system
- 8 tubes
- IF-frequencies
- ?
- Image rejection
- Better than 50 dB
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- N/A
- TX
- -
Physical
- Dimensions (w×h×d)
- 334 × 153 × 262 mm (13.15 × 6.02 × 10.31 in)
- Weight
- 8.00 kg (17.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1966 and 196x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4214
- MPN
- YAESU-FR-000050
