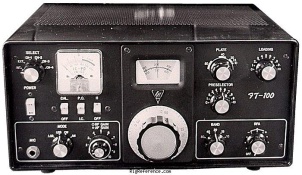

The Yaesu FT-100 (older) is a HF transceiver covering 10-80 m for both reception and transmission. The rig has an RF output of 150 W PEP input. It operates on 12V DC or mains power, with a maximum current drain of 500 mA while receiving and 11 A while transmitting. Dimensions are 152.4 × 266.7 × 330.2 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- 3 tubes. 2 x 6JM6 final
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m
- Modulations
- AM CW SSB
- RF-output
- 150 W (PEP input)
Connections
- Antenna
- -
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- Max 500 mA @ 12 VDC
- TX
- Max 11 A @ 12 VDC
Physical
- Dimensions (w×h×d)
- 266.7 × 152.4 × 330.2 mm (10.50 × 6.00 × 13.00 in)
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 1966 and 196x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4231
- MPN
- YAESU-FT-000100-(OLDER)
