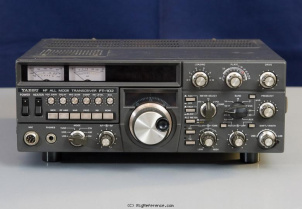

The Yaesu FT-102 is a 10-160 m + WARC transceiver supporting AM/SSB/CW modulations. Maximum RF-output is 100 W. Receiver system is Double conversion superheterodyne with IF frequencies of 1st: 8.2 MHz and 2nd: 455 KHz. Image rejection is >70 dB. The radio features VOX. Dimensions are 129 × 368 × 310 mm. It weighs 15 kg and operates on Mains power.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- Sensitivity
- AM: 1 µV (10 dB (S+N)/N)
FM: 0.4 µV (20 dB quieting)
SSB: 0.25 µV (10 dB (S+N)/N)
CW: 0.18 µV (10 dB (S+N)/N) - Selectivity
- AM/SSB/CW: 2.7 kHz (-6 dB), 4.8 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 8.2 MHz
2nd: 455 KHz - Image rejection
- >70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 368 × 129 × 310 mm (14.49 × 5.08 × 12.20 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1982 and 1984 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Tube hybrid
VOX - Accessories
- -
- RigReference ID
- 4237
- MPN
- YAESU-FT-000102
Manuals, diagrams and brochures
- Yaesu FT-102 Instruction Manual PDF - Unknown size, submitted by RigReference
- Yaesu FT-102 Technical Supplement PDF - Unknown size, submitted by RigReference
