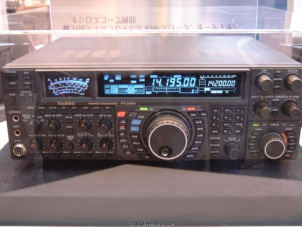

The Yaesu FT-2000 follows in the tradition of venerable FT-1000 series, and incorporates an amazing number of advanced features from the FT-9000 series. The FT-2000 provides a full 100 Watts of power output (AM: 25 W) on the 160-6 Meter Amateur bands, and the U.S. version includes a special memory bank containing the five 60-meter channels, as well. Superb continuous receive from 30 kHz to 60 MHz is provided. The receiver front-end includes VRF (Variable RF Tuning) preselector which works in conjunction with a bank of fixed bandpass filters. This provides a front-line defense against strong out of band signals. The result is improved dynamic range and a higher intercept point than other designs. The First IF roofing filters (3/6/15 kHz) increase dynamic range in crowded band conditions. Variable IF Width and IF Shift allow precise interference rejection, and the receiver DSP also includes an Auto-Notch, Manual Notch, Digital Noise Reduction, and a continuously-variable passband Contour control. The WIDTH control has a mode-determined adjustment range of 200 Hz – 4 kHz for SSB, and 25 Hz to 2.4 kHz on CW, and a mode-optimized “Narrow” key provides one-touch narrowing of the bandwidth to a user-determined preset value. You can also tailor your transmit signal. You have tremendous control over the fidelity and/or “talk power” of your SSB signal, thanks to the variable SSB bandwidth capability in the Menu. The default bandwidth is 2.4 kHz (300 – 2400 Hz @ -6 dB), but you also have selections of 50 – 3000 Hz, 100 – 2900 Hz, 200 – 2800 Hz, and 400 – 2600 Hz, allowing you to select the bandwidth best suiting your operating needs. The DMU-2000 Data Management Unit shown above is optional.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ±0.5 ppm (after 1 min. @ 25 °C)
- Tuning steps
- 1 / 10 Hz / 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 0.03-60 MHz
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- SSB/CW (2 kHz): 0.2 µV
AM (6 kHz): 2 µV
FM: 0.5 µV - Selectivity
- ?
- Filters
- 3/6/15 kHz
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 69.450 MHz
2nd: 450 kHz
3rd: 30 kHz - Image rejection
- > 70 dB
- Audio output
- 2.5 W into 4 Ohms with <10 % THD
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- 5-100W (AM: 2-25 W)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 80 VA max
- TX
- 450 VA max
Physical
- Dimensions (w×h×d)
- 410 × 135 × 350 mm (16.14 × 5.31 × 13.78 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IF-DSP
RF and LF scope
High dynamic range front end
1:st IF 6 KHz and 12 KHz roofing filters.
Twin RX - Accessories
- -
- RigReference ID
- 4245
- MPN
- YAESU-FT-002000
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-2000 is around:
- EUR 341.00 ~ EUR 201.00
- USD 1278.00 ~ USD 19.00
- CAD 320.00
These estimates are based on the following prices:
