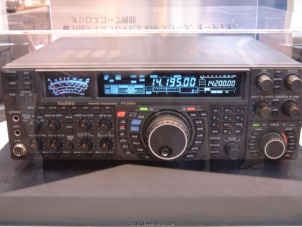

The Yaesu FT-2000 follows in the tradition of venerable FT-1000 series, and incorporates an amazing number of advanced features from the FT-9000 series. The FT-2000 provides a full 100 Watts of power output (AM: 25 W) on the 160-6 Meter Amateur bands, and the U.S. version includes a special memory bank containing the five 60-meter channels, as well. Superb continuous receive from 30 kHz to 60 MHz is provided. The receiver front-end includes VRF (Variable RF Tuning) preselector which works in conjunction with a bank of fixed bandpass filters. This provides a front-line defense against strong out of band signals. The result is improved dynamic range and a higher intercept point than other designs. The First IF roofing filters (3/6/15 kHz) increase dynamic range in crowded band conditions. Variable IF Width and IF Shift allow precise interference rejection, and the receiver DSP also includes an Auto-Notch, Manual Notch, Digital Noise Reduction, and a continuously-variable passband Contour control. The WIDTH control has a mode-determined adjustment range of 200 Hz – 4 kHz for SSB, and 25 Hz to 2.4 kHz on CW, and a mode-optimized “Narrow” key provides one-touch narrowing of the bandwidth to a user-determined preset value. You can also tailor your transmit signal. You have tremendous control over the fidelity and/or “talk power” of your SSB signal, thanks to the variable SSB bandwidth capability in the Menu. The default bandwidth is 2.4 kHz (300 – 2400 Hz @ -6 dB), but you also have selections of 50 – 3000 Hz, 100 – 2900 Hz, 200 – 2800 Hz, and 400 – 2600 Hz, allowing you to select the bandwidth best suiting your operating needs. The DMU-2000 Data Management Unit shown above is optional.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ±0.5 ppm (after 1 min. @ 25 °C)
- Tuning steps
- 1 / 10 Hz / 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 0.03-60 MHz
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- SSB/CW (2 kHz): 0.2 µV
AM (6 kHz): 2 µV
FM: 0.5 µV - Selectivity
- ?
- Filters
- 3/6/15 kHz
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 69.450 MHz
2nd: 450 kHz
3rd: 30 kHz - Image rejection
- > 70 dB
- Audio output
- 2.5 W into 4 Ohms with <10 % THD
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- 5-100W (AM: 2-25 W)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 80 VA max
- TX
- 450 VA max
Physical
- Dimensions (w×h×d)
- 410 × 135 × 350 mm (16.14 × 5.31 × 13.78 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IF-DSP
RF and LF scope
High dynamic range front end
1:st IF 6 KHz and 12 KHz roofing filters.
Twin RX - Accessories
- -
- RigReference ID
- 4245
- MPN
- YAESU-FT-002000
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-2000 in Good condition is around:
- USD 499 ~ USD 1,419
- EUR 1,165 ~ EUR 2,125
- CAD 3,000
These estimates are based on the following prices:
