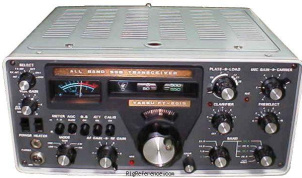

Yaesu FT-201S

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Yaesu FT-201S rigs and spare parts on eBay

The Yaesu FT-201S is a 10-80 meters transceiver. Maximum RF-output is 100 W. Audio output is 3 W at 4 ohms. Features include noise blanker, VOX and +/- 5 kHz clarifier. Dimensions are 153 × 340 × 285 mm.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: AM CW SSB
Sensitivity: 0.3 µV S/N 10 dB
Selectivity: SSB, 2~4 kHz @ 6db
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 3 W at 4 ohms

Transmitter

TX-range: 10-80 m
Modulations: AM CW SSB
RF-output: 100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 340 × 153 × 285 mm (13.39 × 6.02 × 11.22 in)
Weight: 14.00 kg (30.9 lbs)
Form factor: Base Station
Manufactured: Between 1973 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Noise blanker
VOX
+/- 5 kHz clarifier
Accessories: -
RigReference ID: 4248
MPN: YAESU-FT-000201S
