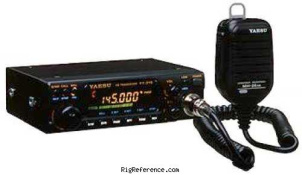

Yaesu FT-215

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Yaesu FT-215 rigs and spare parts on eBay

The Yaesu FT-215 is a VHF transceiver. Frequency range is 144-146 MHz for both receive and transmit. RF output power is selectable: High: 50 W, Medium: 25 W, Low: 5 W. The radio has 1 memory bank with 53 channels. Power requirements are 13.8V DC. Current drain is Max 400 mA in receive and Max 10 A in transmit. Dimensions are 40 × 140 × 160 mm. Weight is 1.25 kg.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 53 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 50 W, Medium: 25 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 400 mA
TX: Max 10 A

Physical

Dimensions (w×h×d): 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight: 1.25 kg (2.8 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4257
MPN: YAESU-FT-000215

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
