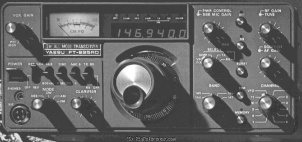

The Yaesu FT-225RD is a 2 meter multi-mode transceiver that operates in SSB, CW, FM and AM modes. Power output is: 25 watts SSB/CW/FM and 8 watts and AM mode. watts. Frequency coverage is 144 to 148 MHz. It has a noise blanker, speaker and three way analog meter (S Meter/Power Out/FM Discriminator). Enjoy digital display to 100 kHz.
The Yaesu FT-225R is a similar analog version at a lower price.
The Yaesu FT-625RD is similar to the FT-225RD, with the same power output, but operates on 6 meters instead of 2 meters.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- AM FM CW SSB
- RF-output
- FM/SSB/CW: 25 W, AM: 15 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- ?
- TX
- Max 5 A
Physical
- Dimensions (w×h×d)
- 280 × 125 × 315 mm (11.02 × 4.92 × 12.40 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1978 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Digital readout
- Accessories
- -
- RigReference ID
- 4261
- MPN
- YAESU-FT-000225RD
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-225RD. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-225RD is around:
- EUR 21.00 ~ EUR 12.00
These estimates are based on the following prices:
