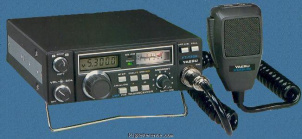

The Yaesu FT-230R is a mobile VHF transceiver. Frequency range for both RX and TX is 144-146 MHz (Europe) or 144-148 MHz (USA). RF output is selectable between High: 25 W and Low: 3 W. It features 1 memory bank with 10 channels. Power requirement is 13.8V DC. Current drain in RX is Max 300 mA, and Max 5 A in TX. Dimensions are 50 × 150 × 174 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 25 W, Low: 3 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 300 mA
- TX
- Max 5 A
Physical
- Dimensions (w×h×d)
- 150 × 50 × 174 mm (5.91 × 1.97 × 6.85 in)
- Weight
- 1.30 kg (2.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1983 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4264
- MPN
- YAESU-FT-000230R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-230R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
