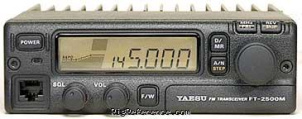

The Yaesu FT-2500M is a Mobile VHF Transceiver. It covers 140-174 MHz for receive and transmits on 144-146 MHz (Europe) or 144-148 MHz (USA). RF output power is selectable: High: 50 W, Medium: 20 W, Low: 5 W. The radio features 1 memory bank with 31 channels and requires 13.8V DC. Dimensions are 50 × 160 × 180 mm and the weight is 1.5 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 31 channels in 1 bank(s)
Receiver
- RX-range
- 140-174 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 50 W, Medium: 20 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 160 × 50 × 180 mm (6.30 × 1.97 × 7.09 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 2000
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4270
- MPN
- YAESU-FT-002500M
Manuals, diagrams and brochures
- Ft2500M Service PDF - 12.86 MB, submitted by David Cowell
- Ft2500M Manual PDF - 4.44 MB, submitted by David Cowell
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2500M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-2500M is around:
- USD 11.00 ~ USD 5.00
These estimates are based on the following prices:
