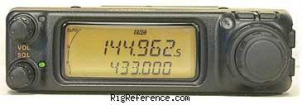

The Yaesu FT-3000M is a mobile VHF transceiver. It covers 110-180 / 300-520 / 800-999 MHz for reception and 144-146 MHz (Europe) or 144-148 MHz (USA) for transmission. The radio features a maximum RF output of 70 W, DCS & ARTS, 9K6 packet ready, Twin RX capability, and 81 memory channels in 1 memory bank. It requires 13.8V DC and weighs 1.25 kg. Dimensions are 40 × 140 × 180 mm. Current drain is 0.5-0.8 A (receive) and Max 15 A (transmit).
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 81 channels in 1 bank(s)
Receiver
- RX-range
- 110-180 / 300-520 / 800-999 MHz
- Modulations
- AM FM
- Sensitivity
- Main: 0.2 µV (12 dB SINAD)
Sub: 0.25 µV (12 dB SINAD) - Selectivity
- 15 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >70 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 70 W, Mid1: 50 W, Mid2: 25 W, Low: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.5-0.8 A
- TX
- Max 15 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 180 mm (5.51 × 1.57 × 7.09 in)
- Weight
- 1.25 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DCS & ARTS
9K6 packet ready
Twin RX - Accessories
- -
- RigReference ID
- 4282
- MPN
- YAESU-FT-003000M
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-3000M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-3000M is around:
- USD 124.00 ~ USD 108.00
These estimates are based on the following prices:
