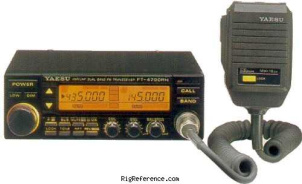

The Yaesu FT-4700RH is a mobile VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA). RF output is High: 50/40 W, Low: 5/5 W. Power requirements are 13.8V DC. Features include a detachable front panel and twin RX. Dimensions are 50 × 150 × 180 mm. Current drain is Max 0.6 A (RX) and Max 10 A (TX).
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 20 / 25 kHz
- Memories
- ?
Receiver
- RX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 50/40 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 0.6 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 150 × 50 × 180 mm (5.91 × 1.97 × 7.09 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1989 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable front panel. Twin RX
- Accessories
- -
- RigReference ID
- 4300
- MPN
- YAESU-FT-004700RH
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-4700RH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-4700RH is around:
- EUR 23.00 ~ EUR 17.00
- GBP 16.00
These estimates are based on the following prices:
