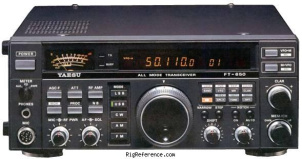

The Yaesu FT-650 is a Desktop HF/VHF Transceiver. It operates on 24 / 28 / 50 MHz for both transmit and receive. The radio has an RF output of 100 W and features an internal speaker. It requires 13.8V DC power and has a maximum current drain of 20 A during transmit.
General characteristics
- HAM bands
- 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 24 / 28 / 50 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheteodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 24 / 28 / 50 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 199x and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4313
- MPN
- YAESU-FT-000650
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-650. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-650 is around:
- GBP 28.00
These estimates are based on the following prices:
