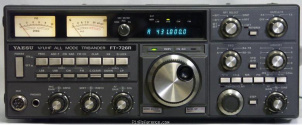

The Yaesu FT-726R is a desktop VHF transceiver. It covers 2m (6m and 70cm optional) for both reception and transmission. The RF output is 10 W. It requires 13.8V DC or mains power. Dimensions are 129 × 334 × 315 mm. Current drain is 1.5 A in receive mode and a maximum of 4.5 A in transmit mode. The weight without options is 11 kg.
General characteristics
- HAM bands
- 6m 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 2m (6m and 70cm optional)
- Modulations
- FM CW SSB
- Sensitivity
- FM: <0.25 µV (12 dB SINAD)
SSB: <0.15 µV (10 dB (S+N)/N) - Selectivity
- FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB: 2.4 kHz (-6 dB), 4.0 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 2m (6m and 70cm optional)
- Modulations
- FM CW SSB
- RF-output
- 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 1.5 A
- TX
- Max 4.5 A
Physical
- Dimensions (w×h×d)
- 334 × 129 × 315 mm (13.15 × 5.08 × 12.40 in)
- Weight
- 11.00 kg (24.3 lbs) without options
- Form factor
- Base Station
- Manufactured
- Between 1983 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4330
- MPN
- YAESU-FT-000726R
Manuals, diagrams and brochures
- Yaesu FT-726R Operating Manual PDF - Unknown size, submitted by RigReference
- Yaesu FT-726R Service Manual PDF - Unknown size, submitted by RigReference
