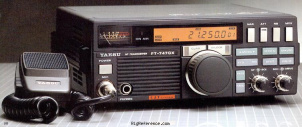

Yaesu FT-747GX

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

SSB/CW/AM: ±200 Hz, FM: ±300 Hz (0°C - 40°C)

Tuning steps

SSB/CW: 25 Hz, AM: 1 kHz, FM: 5 kHz

Memories

20 channels in 1 bank(s)

Receiver

RX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

Sensitivity

SSB/CW: 0.5 µV
AM: 2µV
FM: 0.7 µV (12 dB SINAD)

Selectivity

(-6 dB / -60 dB)
SSB/CW(W)/AM(N): 2.2 / 5 kHz
CW(N): 0.5 / 1.8 kHz
AM(W): 6 / 14 kHz

Filters

500 Hz CW

Receiver system

Double conversion (SSB/CW/AM) Triple conversion (FM)

IF-frequencies

1st: 47.055 MHz
2nd: 8.215 MHz
3rd: 455 kHz (FM-only)

Image rejection

better than 70 dB (1.5-30 MHz)

Audio output

1.5 W

Transmitter

TX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

RF-output

SSB/CW/FM: 100 W PEP, AM: 25 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

238 × 93 × 238 mm (9.37 × 3.66 × 9.37 in)

Weight

3.00 kg (6.6 lbs)

Form factor

Mobile

Manufactured

Between 1987 and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4336

MPN

YAESU-FT-000747GX
