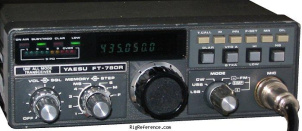

The Yaesu FT-780R is a desktop UHF transceiver. It covers 430-440 MHz (Europe) or 440-450 MHz (USA) for both transmit and receive. The radio has an RF output of 10 W and requires 13.8V DC power. Dimensions are 60 × 180 × 250 mm. Current drain is Max 0.5 A in receive and Max 4 A in transmit.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 MHz (Europe)
440-450 MHz (USA) - Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz (Europe)
440-450 MHz (USA) - Modulations
- FM CW SSB
- RF-output
- 10 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 0.5 A
- TX
- Max 4 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 250 mm (7.09 × 2.36 × 9.84 in)
- Weight
- 3.00 kg (6.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1981 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4347
- MPN
- YAESU-FT-000780R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-780R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-780R is around:
- EUR 45.00
These estimates are based on the following prices:
