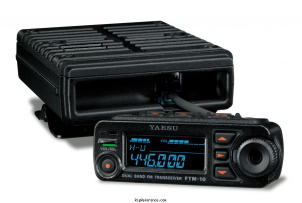

Yaesu FTM-10R

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (2) Compare

Find Yaesu FTM-10R rigs and spare parts on eBay

The Yaesu FTM-10R is a Mobile VHF/UHF Transceiver. It covers 0.5-1.8 / 76-108 / 108-222 / 300-1000 MHz (Cellular blocked in the US) for receive and 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA) for transmit. The RF output is High: 50/40 W, Medium: 20/20 W, Low: 5/5 W. It features 1 memory bank with 500 channels. The transceiver weighs 1.3 kg and has dimensions of 38 × 112 × 178 mm. Current drain is 0.5 A (receive) and 2-8.5 A (transmit).

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 6.25 / 8.22 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 100 kHz
Memories: 500 channels in 1 bank(s)

Receiver

RX-range: 0.5-1.8 / 76-108 / 108-222 / 300-1000 MHz (Cellular blocked in the US)
Modulations: AM FM N-FM W-FM Stereo
Sensitivity: AM (10 dB S/N)
0.5-1.7 MHz: 5 µV
108-137 MHz: 0.8 µV
300-336 MHz: 0.8 µV
FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
336-420 MHz: 0.25 µV
420-470 MHz: 0.2 µV
800-900 MHz: 0.4 µV
900-1000 MHz: 0.8 µV
W-FM (12 dB SINAD)
76-108 MHz: 2 µV
174-222 MHz: 1 µV
470-800 MHz: 5 µV
Selectivity: AM/FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
Modulations: FM N-FM
RF-output: High: 50/40 W, Medium: 20/20 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 11.7-15.8V DC
Current drain RX: 0.5 A
TX: 2-8.5 A

Physical

Dimensions (w×h×d): 112 × 38 × 178 mm (4.41 × 1.50 × 7.01 in)
Weight: 1.30 kg (2.9 lbs)
Form factor: Mobile
Manufactured: Between 2007 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags. Bluetooth. Clock/Calendar. WIRES-ready. Messaging feature. Line in. PA. DTMF, CTCSS & DCS. 9K6 packet ready. Twin RX
Accessories: -
RigReference ID: 4384
MPN: YAESU-FTM-000010R

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Yaesu FTM-10R Instruction Manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-10R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTM-10R is around:

EUR 37.00 ~ EUR 36.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2010	EUR 285.00	New / Good	thiecom.de
2010	EUR 279.00	New / Mint	eBay
