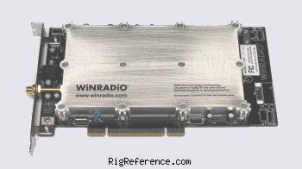

The WiNRADiO WR-G303i is a PC-card HF/VHF/UHF Scanner / receiver. It covers 9 kHz to 30 MHz and has a frequency stability of 10 ppm (0 to 60 C). Tuning steps are 0.001 kHz. The receiver system is DDS-based double-conversion superheterodyne with software-defined last IF stage and demodulator. Image rejection is 60 dB. The WR-G303i features DSP, a trunking option, and a 12 kHz IF2 output. Dimensions are 99 × 195 × 19 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- 10 ppm (0 to 60 C)
- Tuning steps
- 0.001 kHz
- Memories
- ?
Receiver
- RX-range
- 9 kHz - 30 MHz
- Modulations
- AM N-AM AM-sync FM N-FM W-FM CW USB LSB
- Sensitivity
- Mode 0.009-0.1 MHz 0.1-2 MHz 2-30 MHz
AM 9.0V 2.2V 0.9V
LSB, USB 3.0V 0.7V 0.3V
CW 1.2V 0.2V 0.1V
FM3, FM6, FMN 2.2V 0.4V 0.2V - Selectivity
- AM 6 kHz
AMN 4 kHz
AMS 4 kHz
LSB, USB 2.5 kHz
CW 500 Hz
FM3 3 kHz
FM6 6 kHz
FMN 12 kHz - Filters
- ?
- Receiver system
- DDS-based double-conversion superheterodyne with software-defined last IF stage and demodulator
- IF-frequencies
- 1st: 45 MHz
2nd: 12 kHz - Image rejection
- 60 dB
- Audio output
- ?
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Drawn from ISA-bus
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 195 × 99 × 19 mm (7.68 × 3.90 × 0.75 in)
- Weight
- 310 gr (10.9 oz)
- Form factor
- PC-card
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
Trunking option
12 kHz IF2 output
Number of memory channels limited by computer memory
- Accessories
- -
- RigReference ID
- 4423
- MPN
- WINRADIO-WR-G000303I
