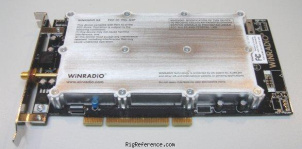

The WiNRADiO WR-G305i is a PC-card HF/VHF/UHF Scanner / receiver. It covers 9 kHz to 1800 MHz (3500 MHz with optional downconverter) and has a frequency stability of 10 ppm (0 to 60 C). Tuning steps are selectable from 1 Hz to kHz. The receiver system is DDS-based double-conversion superheterodyne with software-defined last IF stage and demodulator. Image rejection is 60 dB. It draws power from the PCI interface. Features include DSP, Trunking option, 12 kHz IF2 output, and a number of memory channels limited by computer memory. Dimensions are 99 × 195 × 19 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- 10 ppm (0 to 60 C)
- Tuning steps
- 1 Hz kHz
- Memories
- ?
Receiver
- RX-range
- 9 kHz - 1800 MHz (3500 MHz with optional downconverter)
- Modulations
- AM N-AM AM-sync FM N-FM W-FM CW USB LSB DSB ISB APCO-25
- Sensitivity
- Mode 0.15-500 MHz 500-1800 MHz
AM, AMS 1.7V 1.85V
LSB, USB 0.35V 0.37V
CW 0.2V 0.25V
FM3, FM6, FMN 0.7V 0.8V
FMW (optional) 2.0V 2.0V - Selectivity
- AM 6 kHz
AMN 4 kHz
AMS 4 kHz
LSB, USB 2.5 kHz
CW 500 Hz
FM3 3 kHz
FM6 6 kHz
FMN 12 kHz
FMW (optional) 230 kHz - Filters
- ?
- Receiver system
- DDS-based double-conversion superheterodyne with software-defined last IF stage and demodulator
- IF-frequencies
- 1st: 109.65 MHz
2nd: 12 kHz - Image rejection
- 60 dB
- Audio output
- ?
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Draws from PCI interface
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 195 × 99 × 19 mm (7.68 × 3.90 × 0.75 in)
- Weight
- 310 gr (10.9 oz)
- Form factor
- PC-card
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
Trunking option
12 kHz IF2 output
Number of memory channels limited by computer memory
- Accessories
- -
- RigReference ID
- 4427
- MPN
- WINRADIO-WR-G000305I
