WiNRADiO WR-G315i

PC-card HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

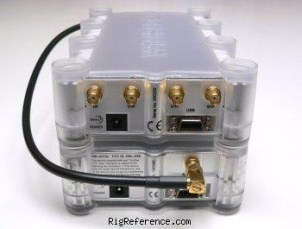

With antenna multiplexer stacked on top - Submitted by elmer

Find WiNRADiO WR-G315i rigs and spare parts on eBay

Find the WiNRADiO WR-G315i on Amazon

The WiNRADiO WR-G315i is a PC-card HF/VHF/UHF Scanner / receiver. It covers a frequency range of 9 kHz to 1800 MHz (3500 or 8599 MHz with optional AMFE unit). The WR-G315i has a frequency stability of 0.5 ppm (0 to 60 C) and tuning steps of 1 Hz kHz. It features a DSP-based SDR with DDS-based double-conversion superheterodyne front end. The WR-G315i has an IF frequency of 1st: 109.65 MHz, 2nd: 16 kHz and image rejection of 1.8-150 MHz: 60 dB typ., 150-1800 MHz: 50 dB typ.. Audio output is via a 600 ohm line audio connection. The WR-G315i draws power from the PCI interface and its dimensions are 99 × 195 × 19 mm.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 1.25m 70cm 33cm 23cm 10m 4m 2000m
Frequency stability: 0.5 ppm (0 to 60 C)
Tuning steps: 1 Hz kHz
Memories: ?

Receiver

RX-range: 9 kHz - 1800 MHz (3500 or 8599 MHz with optional AMFE unit)
Modulations: AM AM-sync FM W-FM CW USB LSB DSB ISB
Sensitivity: Mode 0.15?500 MHz 500?1800 MHz
AM, AMS (30% modulation) ?108dBm
(0.89V) ?104dBm
(1.4V)
AM, AMS (80% modulation) ?116dBm
(0.35V) ?112dBm
(0.56V)
LSB, USB, ISB, DSB ?119dBm
(0.25V) ?115dBm
(0.40V)
CW ?126dBm
(0.11V) ?122dBm
(0.18V)
FM ?113dBm
(0.50V) ?109dBm
(0.80V)
Selectivity: ?
Filters: ?
Receiver system: DSP-based SDR with DDS-based double-conversion superheterodyne front end
IF-frequencies: 1st: 109.65 MHz
2nd: 16 kHz
Image rejection: 1.8-150 MHz: 60 dB typ.150-1800 MHz: 50 dB typ.
Audio output: 600 ohm line audio

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: Drawn from PCI interface
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 195 × 99 × 19 mm (7.68 × 3.90 × 0.75 in)
Weight: 330 gr (11.6 oz)
Form factor: PC-card
Manufactured: Between 200x and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: DSP
Number of memory channels limited by computer memory
Accessories: -
RigReference ID: 4429
MPN: WINRADIO-WR-G000315I
