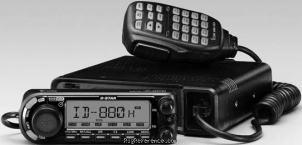

ICOM ID-880H

General characteristics

HAM bands

2m  70cm

Frequency stability

2.5 ppm (10C to +60C)

Tuning steps

5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz

Memories

1052 channels in 26 bank(s)

Receiver

RX-range

118-174 / 230-550 / 810-823 / 849-869 / 894-1000 MHz

Modulations

AM   FM   N-FM   DV

Sensitivity

FM (12 dB SINAD) < 0.18 ?V
DV (BER 1%) < 0.35 ?V

Selectivity

Wide: > 10 kHz/6 dB, < 30 kHz/60 dB
Narrow: > 6 kHz/6 dB, < 20 kHz/60 dB
DV: > 50 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 46.35 MHz
2nd: 450 KHz

Image rejection

60 dB

Audio output

More than 2.0 W at 10% distortion with an 8 ?

Transmitter

TX-range

144-148 / 420-450 MHz (USA)

Modulations

FM   N-FM   DV

RF-output

50/15/5 W (approx.)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC 15%

Current drain RX

1.2 A max

TX

12.5 A max

Physical

Dimensions (w×h×d)

150 × 40 × 200 mm (5.91 × 1.57 × 7.87 in)

Weight

1.30 kg (2.9 lbs)

Form factor

Mobile

Manufactured

Between 2009 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Alpha tags
GPS connectivity
Detachable front panel
USB programmable

Accessories

-

RigReference ID

4440

MPN

ICOM-ID-000880H

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM ID-880H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM ID-880H in Good condition is around:

• EUR -17
• USD 323 ~ USD 426
