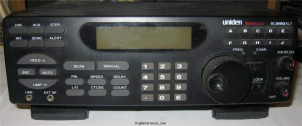

The Uniden-Bearcat BC890XLT is a mobile VHF/UHF scanner / receiver. It covers 29-54 / 108-174 / 216-512 / 806-956 MHz. It features a double conversion superheterodyne receiver system, 10 memory banks with 200 channels, auto-store, auto-sort, rotary control, tape control, weather alert and channel count. The audio output is 2.7 W and the power requirement is 13.8V DC. Dimensions are 84 × 265 × 188 mm. It weighs 1.7 kg.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 10 bank(s) @ 100 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 216-512 / 806-956 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 2.7 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 265 × 84 × 188 mm (10.43 × 3.31 × 7.40 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1994 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-store
Auto-sort
Rotary control
Tape control
Weather alert
Channel count
Optional CTCSS - Accessories
- -
- RigReference ID
- 4460
- MPN
- UNIDEN-BEARCAT-BC000890XLT
Manuals, diagrams and brochures
- Bearcat PDF - 1.18 MB, submitted by Darren Burke
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC890XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Uniden-Bearcat BC890XLT is around:
- USD 24.00
These estimates are based on the following prices:
