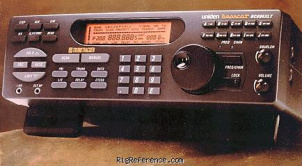

The Uniden-Bearcat BC895XLT is a Mobile VHF/UHF Scanner / receiver. It covers 29-54 / 108-174 / 216-512 / 806-912 MHz. The receiver system is a triple conversion superheterodyne. Audio output is 1.8 W. It features 10 memory banks and 300 memory channels. It has Turbo-search (300 chn/sec), PC programmability, S-meter, CTCSS, rotary control, auto-store, weather alert, auto-sort, backlight, tape record control, data skip, duplicate frequency alert, and 20 search-skip frequencies. Dimensions are 90 × 265 × 188 mm. The current drain in receive mode is 500 mA max.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 300 channels in 10 bank(s) @ 100 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 216-512 / 806-912 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.8 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 500 mA max
- TX
- -
Physical
- Dimensions (w×h×d)
- 265 × 90 × 188 mm (10.43 × 3.54 × 7.40 in)
- Weight
- 1.73 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1997 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Turbo-search (300 chn/sec)
PC programmable
S-meter
CTCSS,
Rotary control
Auto-store
Weather alert
Auto-sort,
Backlight
Tape record control
Data skip
Duplicate frequency alert
20 search-skip frequencies - Accessories
- -
- RigReference ID
- 4461
- MPN
- UNIDEN-BEARCAT-BC000895XLT
Manuals, diagrams and brochures
- Uniden BC895 Programming Control Codes (v. 1.08) PDF - Unknown size, submitted by RigReference
- Uniden BC895XLT Programming Control Codes (v. 1.08) PDF - Unknown size, submitted by RigReference
