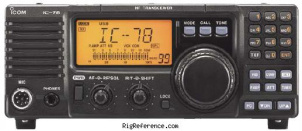

The ICOM IC-78 has a receive range of 30 kHz to 30 MHz. It has a transmit capability from 1.6 to 30 MHz. This radio is very easy to operate with one touch band switching, direct frequency input via keypad and auto tuning steps (senses the rate at which the tuning knob is turned). The receiver section features IF Shift, Adjustable Noise Blanker and RIT. 99 duplex memory channels are available for storing individual transmit and receive frequencies, operating mode, filter setting, as well as 8-character channel names. You can enter channel assignments easily from the 10-key pad. The keypad may also be used for direct frequency entry In addition, an extra 1 call memory is available for storing the most often used, or most important frequency. An independent, one-touch recall switch is available. The transmit section features up to 100 watts of RF output and AF speech compression to increase average audio output. A Morse keyer is built-in. The meter shows output power, ALC and VSWR. The layout and basic operation of this rig is simple. The easy-to-read, large LCD and front firing speaker make this rig ideal for either mobile or base installations. Its one-piece, die-cast aluminum construction, combined with a large heat sink, helps keep internal temperatures down and ensures that operation is stable at high duty cycles. The has rear panel a standard SO-239 antenna jack.

General characteristics

HAM bands
?
Frequency stability
Less than ±30Hz after warm up, less than ±200Hz during warm up (60 minutes).
Tuning steps
0.001 kHz
Memories
100 channels in 1 bank(s)

Receiver

RX-range
0.03-30 MHz
Modulations
AM   CW   USB   LSB
Sensitivity
SSB, CW, RTTY: 0.16 µV (1.6-30 MHz)
AM: 13 µV (0.5-1.6 MHz)
AM: 2 µV (1.6-30 MHz)
Selectivity
SSB, CW, RTTY
More than 2.1 kHz/-6 dB
Less than 4.5 kHz/-60 dB
AM
More than 6.0 kHz/-6 dB
Less than 20 kHz/-40 dB
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
70dB
Audio output
2W@10% THD

Transmitter

TX-range
1.6-30 MHz
Modulations
AM   CW   USB   LSB
RF-output
100 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
12V DC
Current drain RX
2A
TX
20A max

Physical

Dimensions (w×h×d)
240 × 95 × 239 mm (9.45 × 3.74 × 9.41 in)
Weight
3.80 kg (8.4 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4549
MPN
ICOM-IC-000078
