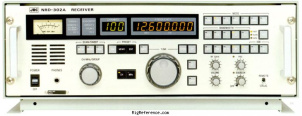

The Japan Radio Company's NRD-302A was designed in compliance with the GMDSS carriage requirements under SOLAS. Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, and FSK (RTTY) modes. ISB mode is offered as an option.
Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, DSB (AM), FSK (RTTY) and FAX modes. Supplied bandwidths include: 6, 3, 1 and 0.3 kHz (0.5 kHz optional). The built in 300 channel memory stores: frequency, mode, bandwidth, AGC and ATT data. Scan and sweep are supported. Other refinements include: AF Filter, NB, Pass Band Shift, Lock, User Defined Functions, Dimmer, Self-Test, AGC selection and front-firing built-in speaker. A built in self-test function is also featured. The AC input supply voltage is user selectable from the back panel.
The NRD-302A is designed for mounting in a standard 19 inch commercial rack.
General characteristics
- HAM bands
- ?
- Frequency stability
- ± 20 Hz after 1 min below 13 MHz. ± 50 Hz after 1 min > 13 MHz.
- Tuning steps
- 1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 0.09-30 MHz
- Modulations
- AM CW USB LSB DSB RTTY FAX
- Sensitivity
- 2µV SSB 1.8-30 MHz (10 dB S+N/N)
- Selectivity
- 6.0 kHz
3.0 kHz
0.5 kHz
1.0 kHz
0.5 kHz [Optional]
0.3 kHz - Filters
- ?
- Receiver system
- Up Conversion Dual Superheterodyne
- IF-frequencies
- ?
- Image rejection
- > 70 dB
- Audio output
- 1 Watts at 8 Ohms
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24V DC or mains
- Current drain RX
- 36W
- TX
- -
Physical
- Dimensions (w×h×d)
- 480 × 150 × 290 mm (18.90 × 5.91 × 11.42 in)
- Weight
- 7.50 kg (16.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 199x and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4569
- MPN
- JRC-NRD-000302A
