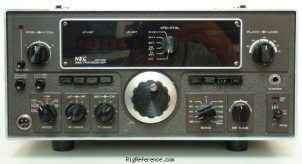

The NEC CQ-110 is a Japanese transceiver from the 1970s. It was produced in different versions: CQ-110, CQ-110N and CQ-110E.
Features include VOX, RIT (NEC calls it FINE), noise blanker, digital frequency readout with UP and LOW limit LEDs, provision to use two XTALs for fixed channels, heater button, a 100 kHz calibrator.
Optional accessories: external speaker, external VFO, linear amplifier (CQ-301). (CW filter and DC/DC converter were optional for CQ-110 and CQ-110N)
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- 100 Hz or less after 30 minutes
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 160-10m
- Modulations
- AM CW USB LSB
- Sensitivity
- SSB/CW: 0.3µV S/N 10dB or more
AM: 1µV S/N 6dB or more - Selectivity
- SSB/CW: 0.6kHz (-6dB) 1.6kHz (-60dB)
AM: 2.4kHz (-6dB) 4.5kHz (-60dB) - Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- 9MHz
- Image rejection
- >60dB
- Audio output
- 3W (10% distortion)
Transmitter
- TX-range
- 160-10m
- Modulations
- AM CW USB LSB
- RF-output
- SSB/CW: 280W, AM: 80W
Connections
- Antenna
- SO-239
- Impedance
- 50/100Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC or mains
- Current drain RX
- 70W max
- TX
- 320W max
Physical
- Dimensions (w×h×d)
- 334 × 322 × 153 mm (13.15 × 12.68 × 6.02 in)
- Weight
- 18.00 kg (39.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4584
- MPN
- NEC-CQ-000110
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used NEC CQ-110. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the NEC CQ-110 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
