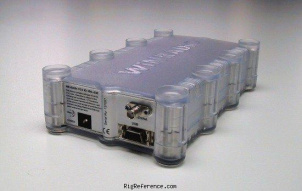

WiNRADiO WR-G33EM

General characteristics

HAM bands

?

Frequency stability

10 ppm (0 to 60 C)

Tuning steps

1 Hz kHz

Memories

?

Receiver

RX-range

9 kHz - 30 MHz

Modulations

AM   N-AM   CW   USB   LSB   DSB

Sensitivity

Mode 0.1-0.5 MHz 0.5-2.0 MHz 2.0-30 MHz
AM* 2.0µV 0.5µV 0.4µV
LSB, USB 0.7µV 0.3µV 0.2µV
CW 0.3µV 0.2µV 0.1µV

(10dB S+N/N)
* 80% modulation

Selectivity

Continuously adjustable 100-15000 Hz

Filters

?

Receiver system

DDS-based dual-conversion superheterodyne with software-defined last IF stage and demodulator

IF-frequencies

?

Image rejection

60 dB

Audio output

?

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

12V DC

Current drain RX

500mA

TX

-

Physical

Dimensions (w×h×d)

164 × 96 × 41 mm (6.46 × 3.78 × 1.61 in)

Weight

467 gr (1.0 lbs)

Form factor

Headless

Manufactured

Between 200x and 200x

Other features

Usage

Marine / Navy

Features + options

DSP
Trunking option
12 kHz IF2 output
Number of memory channels limited by computer memory

Accessories

-

RigReference ID

4671

MPN

WINRADIO-WR-G000033EM
