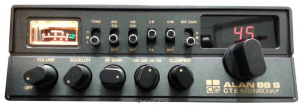

The Alan 88S is a mobile transceiver. The frequency range for both RX and TX is 26.865-27.265 MHz. It uses channelized tuning steps. The receiver system is a double conversion superheterodyne with IF frequencies of 10.7 MHz and 455 kHz. Image rejection is 50 dB. RF output is 4.8 W. Audio output is 3 W / 8 Ohm. Memory features include 1 bank with 240 channels. Power requirements are 13.8 V DC. Features include ANL, NB and Clarifier. Dimensions are 63 × 185 × 247 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 240 channels in 1 bank(s)
Receiver
- RX-range
- 26.865-27.265 MHz
- Modulations
- AM FM USB LSB
- Sensitivity
- 0.5 µV (10 dB S+N/N
- Selectivity
- 3 kHz @ -6 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz
455 kHz - Image rejection
- 50 dB
- Audio output
- 3 W / 8 Ohm
Transmitter
- TX-range
- 26.865-27.265 MHz
- Modulations
- AM FM USB LSB
- RF-output
- 4.8 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 185 × 63 × 247 mm (7.28 × 2.48 × 9.72 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- ANL
NB
Clarifier - Accessories
- -
- RigReference ID
- 4703
- MPN
- ALAN-000088S
