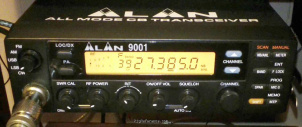

The Alan 9001 is a mobile transceiver. It covers 26.500-30.200 MHz for both reception and transmission. RF output power is SSB: 25 W, AM/FM/CW: 10 W. It features 1 memory bank with 440 channels. Power requirements are 12 V DC. The current drain during transmit is 6 A max. Dimensions are 60 × 200 × 265 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- 10 / 100 / 1000 Hz
- Memories
- 440 channels in 1 bank(s)
Receiver
- RX-range
- 26.500-30.200 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 26.500-30.200 MHz
- Modulations
- AM FM CW USB LSB
- RF-output
- SSB: 25 W, AM/FM/CW: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12 V DC
- Current drain RX
- ?
- TX
- 6 A max
Physical
- Dimensions (w×h×d)
- 200 × 60 × 265 mm (7.87 × 2.36 × 10.43 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4705
- MPN
- ALAN-009001
