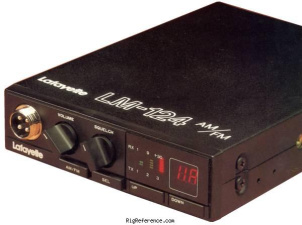

Lafayette LM-124 AM/FM

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Lafayette LM-124 AM/FM rigs and spare parts on eBay

Find the Lafayette LM-124 AM/FM on Amazon

The Lafayette LM-124 AM/FM is a mobile transceiver. It operates on the 11m (CB) band with a frequency range of 26.965-27.255 MHz for both reception and transmission. The radio features channelized tuning steps, 1 memory bank with 24 channels, and an RF output of 3.5 W. Dimensions are 33 × 130 × 175 mm and it weighs 900 gr.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 24 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM FM
RF-output: 3.5 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 130 × 33 × 175 mm (5.12 × 1.30 × 6.89 in)
Weight: 900 gr (2.0 lbs)
Form factor: Mobile
Manufactured: Between 198x and 198x

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 4822
MPN: LAFAYETTE-LM-000124-AM/FM

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
