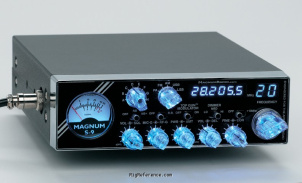

8×40 channels

General characteristics

HAM bands
11m (CB)
Frequency stability
Better than +10 p.p.m. from 0 - 40 °C after 15 min. warm up
Tuning steps
Channelized
Memories
320 channels in 1 bank(s)

Receiver

RX-range
25.615-32.990 MHz
Modulations
AM   FM   SSB
Sensitivity
SSB: 0.25 µV at 10 dB S + N/N
AM: 1.0 µV at 10 dB S + N/N
FM: 0.3 µV at 12 dB SINAD
Selectivity
SSB: 4.2 kHz (-6 dB) / 8.5 kHz (-60 dB)
AM / FM: 6.0 kHz (-6 dB) / 18 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.695 MHz
2nd: 455 kHz
Image rejection
≥ 70 dB
Audio output
2 watts minimum at 10% THD with an 8 ohm load

Transmitter

TX-range
25.615-32.990 MHz
Modulations
AM   FM   SSB
RF-output
AM: 45 W PEP, SSB/FM: 40 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12 - 13.8 V DC, negative ground
Current drain RX
?
TX
7 A max

Physical

Dimensions (w×h×d)
195 × 60 × 290 mm (7.68 × 2.36 × 11.42 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Mobile
Manufactured
Between 2004 and 200x in China

Other features

Usage
Citizen Band (27Mc)
Features + options
-
Accessories
-
RigReference ID
4837
MPN
MAGNUM-S-000009

Manuals, diagrams and brochures

Magnum S-9 Operating Manual PDF - 315.6 kB, submitted by Gerd
Magnum S-9 Circuit Diagram PDF - 192.8 kB, submitted by Gerd

Upload relevant documents

Reviews & stories

Rating Title Submitted
FM test on cb 4 years ago by Gerd

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Magnum S-9. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Magnum S-9 is around:

  • EUR 82.00
  • USD 334.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 350.00 Used / Mint RigReference
2018 EUR 100.00 Used / Mint Gerd
