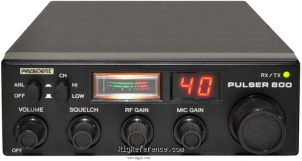

The President Pulser 800 is a mobile transceiver. It covers 26.965-27.855 MHz for both receive and transmit with ± 0.03 % frequency stability. The radio features channelized tuning steps, double conversion superheterodyne receiver system, ANL feature, 1 memory bank with 80 channels and requires 13.8 V DC power supply. Dimensions are 55 × 160 × 200 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ± 0.03 %
- Tuning steps
- Channelized
- Memories
- 80 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.855 MHz
- Modulations
- AM
- Sensitivity
- 0.5 µV for 10 dB S+N/N
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.855 MHz
- Modulations
- AM
- RF-output
- 8 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 160 × 55 × 200 mm (6.30 × 2.17 × 7.87 in)
- Weight
- 1.76 kg (3.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Taiwan
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- ANL
- Accessories
- -
- RigReference ID
- 4901
- MPN
- PRESIDENT-PULSER-000800
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used President Pulser 800. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
