President Wilson

Mobile Transceiver

Specs Manuals (3) Reviews (0) Prices (0) Compare

Find President Wilson rigs and spare parts on eBay

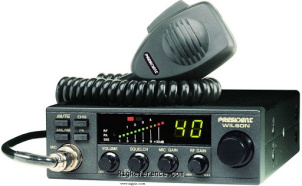

The President Wilson is a mobile transceiver. The frequency range is 26.965-27.405 MHz supporting AM/FM modulations. Maximum RF-output is 4 W. The radio features 40 channels in one bank. Dimensions are 50 × 150 × 210 mm (without antenna plug and/or heatsink).

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.405 MHz
Modulations: -
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 26.965-27.405 MHz
Modulations: -
RF-output: 4 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 150 × 50 × 210 mm (5.91 × 1.97 × 8.27 in) (without antenna plug and/or heatsink)
Weight: ?
Form factor: Mobile
Manufactured: Between 199x and 199x

Other features

Usage: Citizen Band (27Mc)
Features + options: AM/FM
Accessories: -
RigReference ID: 4905
MPN: PRESIDENT-WILSON

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: President Wilson Instruction Manual PDF - 1.70 MB, submitted by Gerd
: President Wilson Service Manual (French) PDF - 4.15 MB, submitted by Gerd
: President Wilson Circuit diagram PDF - 1.94 MB, submitted by Gerd
