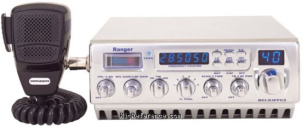

Ranger RCI-63FFC2

Mobile CB Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Ranger RCI-63FFC2 rigs and spare parts on eBay

Find the Ranger RCI-63FFC2 on Amazon

The Ranger RCI-63FFC2 is a mobile transceiver covering 28.245-29.655 / 25.615-28.305 MHz for both receive and transmit. It has a frequency stability of 0.001 %. The RF output is 200 W and audio output is 2.5 W at 10% THD. Features include NB/ANL and echo chamber. It has 1 memory bank with 240 channels and requires 13.8 V DC power.

General characteristics

HAM bands: 11m (CB)
Frequency stability: 0.001 %
Tuning steps: Channelized
Memories: 240 channels in 1 bank(s)

Receiver

RX-range: 28.245-29.655 / 25.615-28.305 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 2.5 W at 10% THD

Transmitter

TX-range: 28.245-29.655 / 25.615-28.305 MHz
Modulations: AM FM
RF-output: 200 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Mobile
Manufactured: Between 200x and 200x

Other features

Usage: Citizen Band (27Mc)
Features + options: NB/ANL
Echo chamber
Accessories: -
RigReference ID: 4908
MPN: RANGER-RCI-000063FFC2

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Ranger RCI-63 Series Owner's Manual PDF - 2.64 MB, submitted by RigReference
