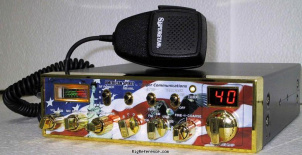

Ranger SS-3900EGHP

General characteristics

HAM bands

11m (CB)  10m

Frequency stability

± 0.001 %

Tuning steps

Channelized

Memories

240 channels in 1 bank(s)

Receiver

RX-range

28.015-28.465 MHz

Modulations

AM   FM   USB   LSB

Sensitivity

AM: < 1.0 μV For 10dB S+N/N
FM: < 0.5 μV For 12dB S+N/N
SSB/CW: < 0.5 μV For 10dB S+N/N

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.695 MHz (AM-1st, SSB)
2nd 455 KHz (AM-2nd)

Image rejection

> 50 dB

Audio output

2.5W @ 10% THD

Transmitter

TX-range

28.015-28.465 MHz

Modulations

AM   FM   USB   LSB

RF-output

AM/FM/CW: 9 W RMS, SSB: 25 W PEP

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC nominal ±15%

Current drain RX

< 1.2 A

TX

< 5 A

Physical

Dimensions (w×h×d)

200 × 60 × 273 mm (7.87 × 2.36 × 10.75 in)

Weight

2.25 kg (5.0 lbs)

Form factor

Handheld

Manufactured

Between 2004 and 201x

Other features

Usage

Citizen Band (27Mc)

Features + options

AM/FM/SSB/CW

Accessories

-

RigReference ID

4911

MPN

RANGER-SS-003900EGHP
